Solar System For Home

20kva Solar System 20kw Off Grid Solar System Price

Solar power can power your loads, the solar excess electricity is stored in battery suitable to use in the area where the city power is not stable or expensive electricity

Product Specification:
  • Model : XH-SY-20KW
  • Place Of Origin : Shandong, China
  • BrandName : XIANGHONG SOLAR
  • MOQ : 1 set,Accpet OEM &ODM
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
Specification
Application
Video



             20kw off grid solar system



Invest Home With 20kw Off Grid Solar System---Save Your Electricity Bill



20kw off grid solar system is simple and most use for home,It is used for self household appliances, solar panel generate electricity to store power in batteries, customer can use it in any time. It is suitable for remote village, rural area or without stable utility grid.



            Complete 20kw Off Grid Solar System



20kw off grid solar system is easy to install and simple to operate, If the inverter connect to grid,It means if solar system have no power, inverter will connect to city grid automatically to keep supplying electricity for home appliances.



20kw Off Grid Solar System Configuration Details



1. 4 parallels of 8pcs 39.62V 630W solar panel connect in series to be 316.96V DC

2. 4 parallels of 8pcs X 630W solar panel connect to combiner box

3. combiner boxes connect to Controller input .

4. The controller output to charge 16pcs 12V 250AH batteries of 192V connected in series,

5. The power from 16pcs batteries of 192V DC connect to 192V DC input of 20KW inverter

6. The inverter will transform 192V DC to be 220V/230V for home use



               630W Shingled solar panel

 630W Shingled solar panel

  laminated Mono A grade

  25years warranty

  Above 25years Long Lifespan

   Vmp: 39.62V    Imp: 15.90A

  Open circuit voltage: 48.60V

  Size:2158mm×1236mm×35mm

  High efficiency,Anti-reflective,

  Anti-soiling surface power loss from dirt

      Mounting Bracket

 Mounting Bracket

  1, Wind Load Max 55m/s

   2, Snow load: Max 1.5kn/m2

   3, Setting angle: 0-60°

   4, Material: Aluminum alloy

   5, Standard: Suit for EU,AU,US

           Solar Combiner Box

 Solar Combiner Box

  Lighting Protection

  Reverse and surge protection

  Waterproof Protection IP65

  Over Current and Voltage Protection

            Solar 4mm² Cables

  Solar 4mm² Cables

  (one red or one black)

  suitable for solar system

  -40℃-90℃

       Solar 4mm² Cables

  250AH battery

  Low Self-Discharge

  Free Maintenance

  Deep Cycle Performance

         MC4 connector 8pairs 30A 1000V

  MC4 connector 8pairs 30A 1000V

  Wire Cable Cutter &Stripper
  MC4 Crimper, Disassembly Tool

  Battery connector cable

           20kw Inverter

 20kw Inverter

Built in MPPT charger controller

MCU, SPWM control technology,

Pure sine wave;

Unique dynamic current loop control technology;

Applying to capacitive/inductive /nonlinear mixed load;

Strong overload and impact resistance;

Perfect protection function: overload, short circuit, over-temperature etc.

High efficiency, low noise, environmentprotect and energy save;

Automatic switching, unattended;

Stable performance, safe and reliable,   long lifespan;



20kw Off Grid Solar System Introduction



Our solar panel factory started from 2003, our customer's solar panel worked 19years, we warranty our solar system have a long lifespan above 25years.

Our solar system have made many projects for home and power station, successfully used by customer with very high efficiency, 5 to 6 years cost-recovering, 25years warranty, can be used above 30years with free electricity obtaining.



20kw Hybrid Inverter



20KW solar system can generate 140 to 160KWH in a sunny day
The system include:
32pcs of 630W solar panel+ mounting bracket+ cables+combiner box+16pcs or 32pcs 250AH batteries +20kw hybrid inverter



20kw Solar System for Home Sample



20kw Solar System for Home



What do our customer say?



Solar System Review

Solar System Review

Solar System Review





Xianghong Solar Power System Projects



Solar Power System Projects

Solar Power System Projects

Solar Power System Projects

Solar Power System Projects

Solar Power System Projects



Xianghong Solar System Projects





Xianghong Solar System



Xianghong Solar System Packing & Delivery



Xianghong Solar System Packing



Xianghong Solar System Warranty



Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



Xianghong Solar System Company Profile



Xianghong Solar System Factory



Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.



We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.



We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.



Xianghong Solar System Factory



Xianghong Solar System Factory



Xianghong Solar System Factory



Xianghong Solar System Manufacturer



Xianghong Solar System Exhibition



Xianghong Solar System Exhibition



Xianghong Solar System Certifications



Xianghong Solar System Certifications



Xianghong Solar System FAQ



1. Are you factory or trading company?

We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.



2. What is your company advantage?

We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.

We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.



3. What is the payment method?

Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.



4. What is the lead time?

Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.

Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.



5. What is your warranty?

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



6. How about the installation?

The home solar system is easy to install,,customer can install it by themself,There have instruction book with the goods,We provide installation drawing and user manual for you.

We can sppoint our engineers to guide the installation for big solar project.



Contact Xianghong Solar System



Xianghong Solar System Contact



Product name 20kw solar system
Solar panel 630W Mono
Battery Gel Battery
Material Aluminum Alloy
Color Black
Inverter Pure Sine Wave
Certificate CE RoHS TUV ISO CQC
Life Span More than 25years
Warranty 10 Years
Controller PWM
Application Home
Solar Panel Type Monocrystalline Silicon
Battery Type Gel Battery
Controller Type MPPT
Mounting Type Ground Mounting
Mounting Type Roof Mounting
Place of Origin CN;SHN
Brand Name Xianghong
Model Number XH-SS-20KW
Load Power (W) 20KVA
Output Voltage (V) 220V
Output Frequency 50HZ
Work Time (h) 24h



Our 630W shingled solar panel instruction



630W shingled solar panel instruction

Our solar system use 630W shingled solar panel, it is higher technology than half cut solar panel, please check this attached 630w instruction, it have big advantage and can bring higher efficiency.

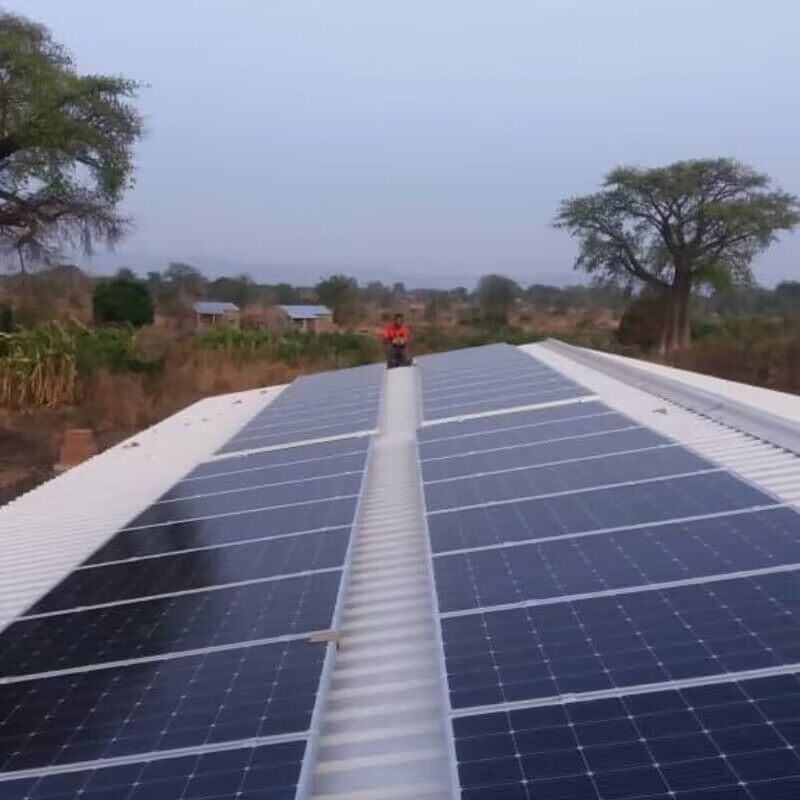

Our previous solar system for home and projects



solar system for home projects

solar system for home projects
