Better Factory Wholesale Price 5kw Off Grid Solar Power System For Home

Invest Home With 5kw Off Grid Solar Power System---Save Your Electricity Bill

Off grid solar system is easy to install and simple to operate, 5kw 6kw 8kw 10kw solar system is popular for home use.We are factory, so price is better.

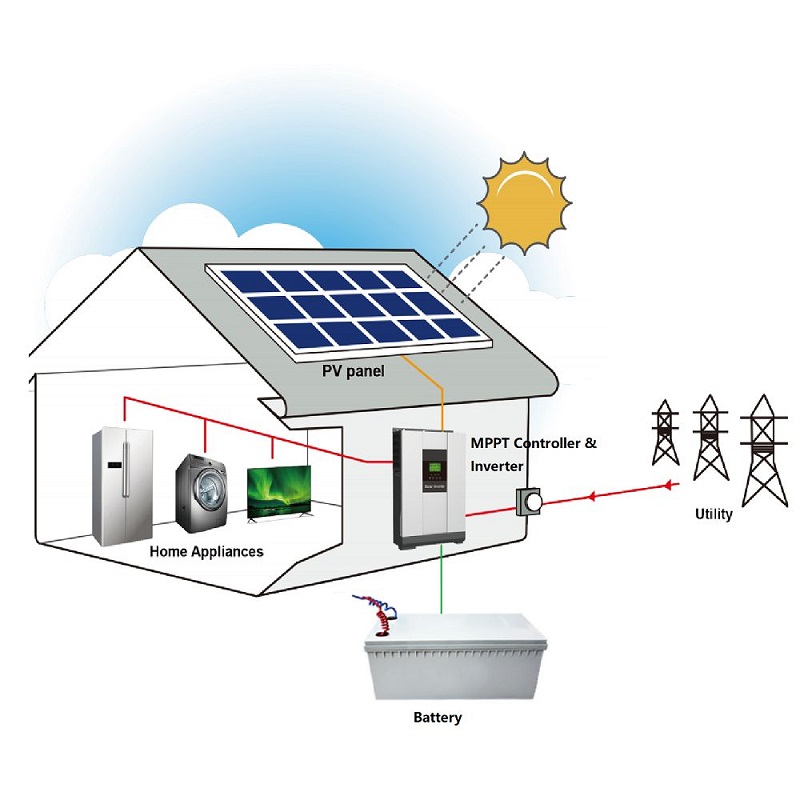

What is Off grid solar system?

Solar panel generate electricity to output free power for your loads, the solar excess electricity is stored in battery,customer can use it in any time. It is used for household appliances in remote village, rural area, without stable utility grid, the area where the city power is not stable or electrcity bill expensive.

If the inverter connect to grid utility,It means if solar system battery have no power, inverter will connect to city grid automatically to keep supplying electricity for home appliances.

5kw Off Grid Solar System Configuration Details

	630W Shingled solar panel   laminated Mono A grade   25years warranty   Above 25years Long Lifespan    Vmp: 39.62V    Imp: 15.90A   Open circuit voltage: 48.60V   Size:2158mm×1236mm×35mm     High efficiency,Anti-reflective,   Anti-soiling surface power loss from dirt
	Solar Mounting Bracket   1, Wind Load Max 55m/s    2, Snow load: Max 1.5kn/m2    3, Setting angle: 0-60°    4, Material: Aluminum alloy    5, Standard: Suit for EU,AU,US
	Solar Combiner Box   Lighting Protection   Reverse and surge protection   Waterproof Protection IP65   Over Current and Voltage Protection
	4mm² Solar Cables   (one red or one black)   suitable for solar system   -40℃-90℃
	250AH battery   Low Self-Discharge   Free Maintenance   Deep Cycle Performance
	MC4 Connector 8pairs 30A 1000V   Wire Cable Cutter &Stripper   MC4 Crimper, Disassembly Tool                              Battery connector cable
	5kw Inverter   Power frequency scheme design,   Pure sine wave output,   Suitable for various types of loads;   Battery overvoltage / low voltage,   Overload, short circuit,   Over temperature protection, etc;   Built in MPPT controller,   Higher charging efficiency;

5kw Off Grid Solar System Introduction

5KW solar system can generate 35 to 40KWH in a sunny day

Our solar system have made many projects for home and power station, successfully used by customer with very high efficiency, 5 to 6 years cost-recovering, 25years warranty, can be used above 30years with free electricity obtaining.

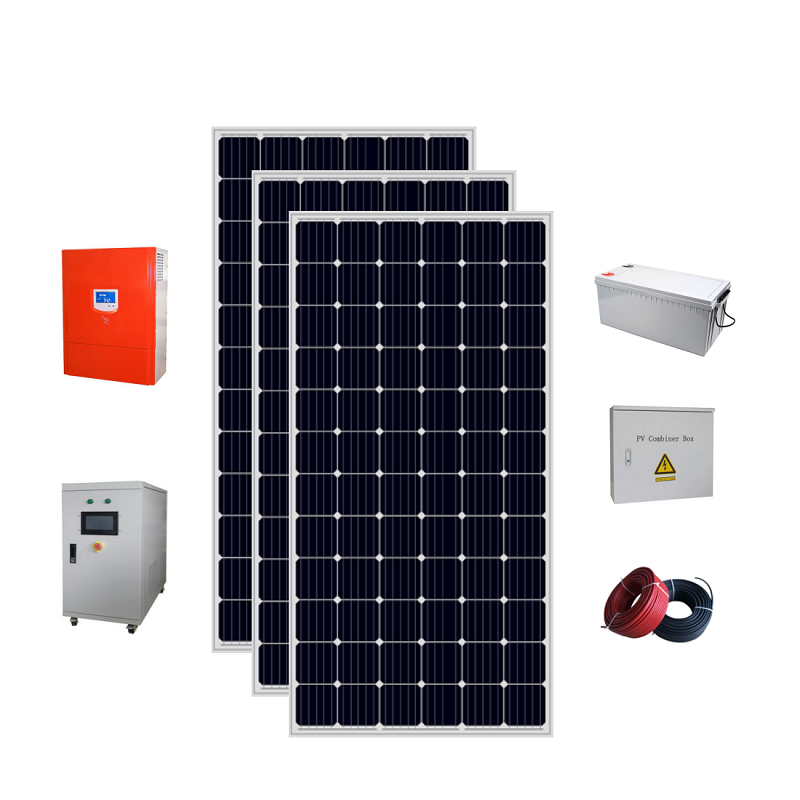

The system include:
8pcs of 630W solar panel+ mounting bracket+ cables+combiner box+4pcs or 8pcs 250AH batteries +5kw hybrid inverter

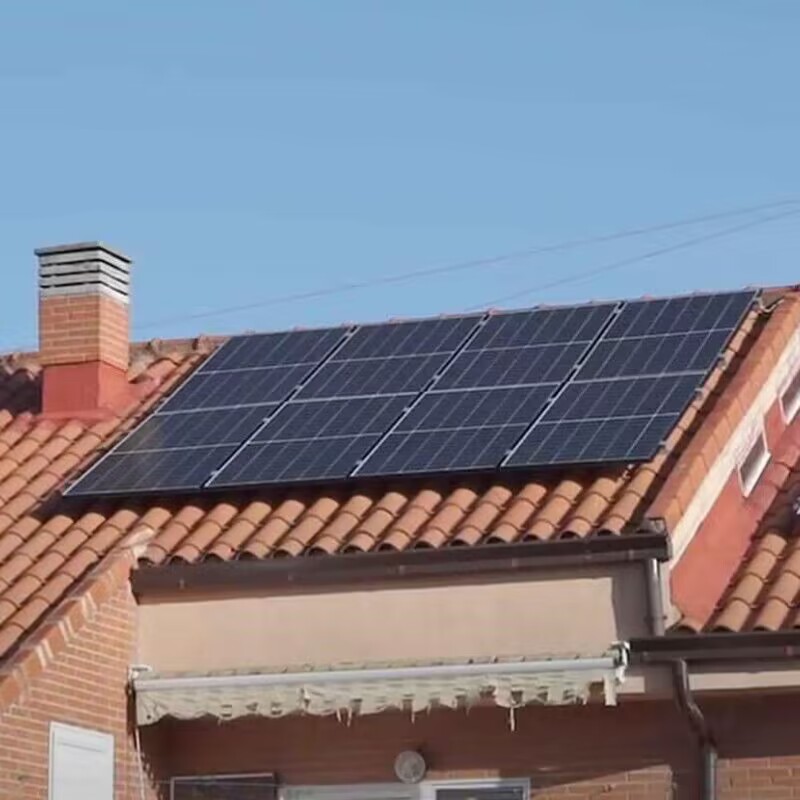

5kw solar system for home cases

What do our customer say?

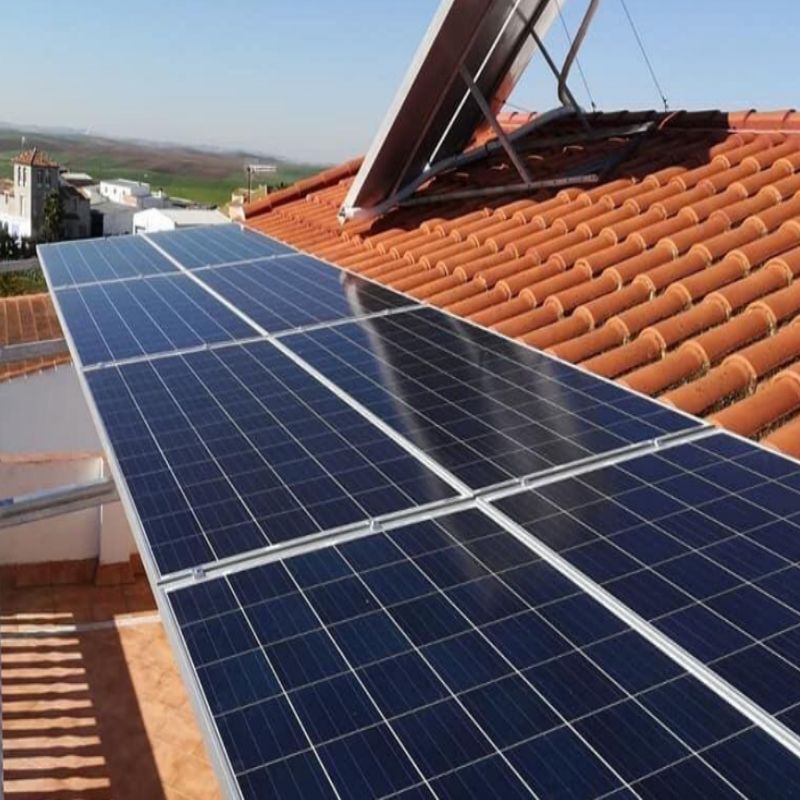

Xianghong Solar Power System Projects

Off Grid Solar System Projects Video

5kw Off Grid Solar System Packing & Delivery

Xianghong Solar Products Warranty

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1）.During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2）,After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3）,Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance

Xianghong Solar Company Profile

Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.

We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.

We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.

Xianghong Solar factory workshop

Xianghong Solar System Manufacturer

Xianghong Solar Exhibition

Xianghong Solar Certifications

Xianghong Solar FAQ

1, Are you factory or trading company?

We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.

2. What is your company advantage?

We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.

We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.

3, What is the payment method?

Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.

4,What is the lead time?

Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.

Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.

5, What is your warranty?

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1）.During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2）,After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3）,Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance

6, How about the installation?

The home solar system is easy to install,,customer can install it by themself,There have instruction book with the goods,We provide installation drawing and user manual for you.

We can sppoint our engineers to guide the installation for big solar project.
