Solar System For Home

Complete Set 30kw Off Grid Solar System Cost For Hotel

Solar power can power your loads, the solar excess electricity is stored in battery suitable to use in the area where the city power is not stable or expensive electricity

Product Specification:
  • Model : XH-SY-30KW
  • Place Of Origin : Shandong,China
  • BrandName : XIANGHONG SOLAR
  • MOQ : 1 set,Accpet OEM &ODM
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal
Inquiry Now
Product Details
Specification
Application
Video



             30kw Solar System With Battery



Invest home with 30kw solar power system---Save your electricity bill



30kw off grid solar system is simple and most use for home,It is used for self household appliances, solar panel generate electricity to store power in batteries, customer can use it in any time. It is suitable for remote village, rural area or without stable utility grid.



            Complete 30kw Off Grid Solar Power System



30kw off grid solar system is easy to install and simple to operate,If the inverter connect to grid,It means if solar system have no power, inverter will connect to city grid automatically to keep supplying electricity for home appliances.



30kw Solar System With Battery Configuration Details



30KW solar system can generate 220 to 240KWH in a sunny day
The system include:
48pcs of 630W solar panel+ mounting bracket+ cables+combiner box+controller+40pcs 250AH batteries +30kw hybrid inverter



1. 6 parallels of 8pcs 39.62V 630W solar panel connect in series to be 316.96V DC

2. 6 parallels connect one combiner box 6 to 1

3. the combiner box connect input of 30kw controller, then the controller output will charge 2 parallels of 20pcs of 12V 250AH batteries which is connected in series to be 240V.

4. The power from batteries of 240V DC will connect to input of 240V of 30KW inverter ,then the inverter will transform 240V DC to be output of AC 220V 50Hz/60Hz for home use



                                                                                                                                                                                      630W Shingled solar panel

 630W Shingled solar panel

  laminated Mono A grade

  25years warranty

  Above 25years Long Lifespan

   Vmp: 39.62V    Imp: 15.90A

  Open circuit voltage: 48.60V

  Size:2158mm×1236mm×35mm

  High efficiency,Anti-reflective,

  Anti-soiling surface power loss from dirt

                                                  Mounting Bracket

  Mounting Bracket

  1, Wind Load Max 55m/s

   2, Snow load: Max 1.5kn/m2

   3, Setting angle: 0-60°

   4, Material: Aluminum alloy

   5, Standard: Suit for EU,AU,US

                                                            Solar Combiner Box

 Solar Combiner Box

  Lighting Protection

  Reverse and surge protection

  Waterproof Protection IP65

  Over Current and Voltage Protection

                                                                Solar 4mm² cables

  Solar 4mm² cables

  (one red or one black)

  suitable for solar system

  -40℃-90℃

                                      250AH battery

250AH battery

  Low Self-Discharge

  Free Maintenance

  Deep Cycle Performance

                                                         MC4 connector 8pairs 30A 1000V

MC4 connector 8pairs 30A 1000V

  Wire Cable Cutter &Stripper
  MC4 Crimper, Disassembly Tool

  Battery connector cable

                   Automatic power control

Automatic power control function

Modular design with simple structure and easy maintenance;

LCD display;

Perfect protection for solar panel and battery

                       30kw Inverter

30KW Inverter

Low frequency toroidal transformer increase efficiency,Pure sine wave;

IGBT from Mitsubishi as power components;

Using American ATEMEL as figure controller; Perfect protection and warning functions;

Touch screen, perfect display;

Supports diesel or gasoline generator;

Provide strong power all day 24hours



30kw Solar System With Battery Introduction



Our solar panel factory started from 2003, our customer's solar panel worked 19years, we warranty our solar system have a long lifespan above 25 years.



Our solar system have made many projects for home and power station, successfully used by customer with very high efficiency, 5 to 6 years cost-recovering, 25years warranty, can be used above 30years with free electricity obtaining.





          Solar Controller

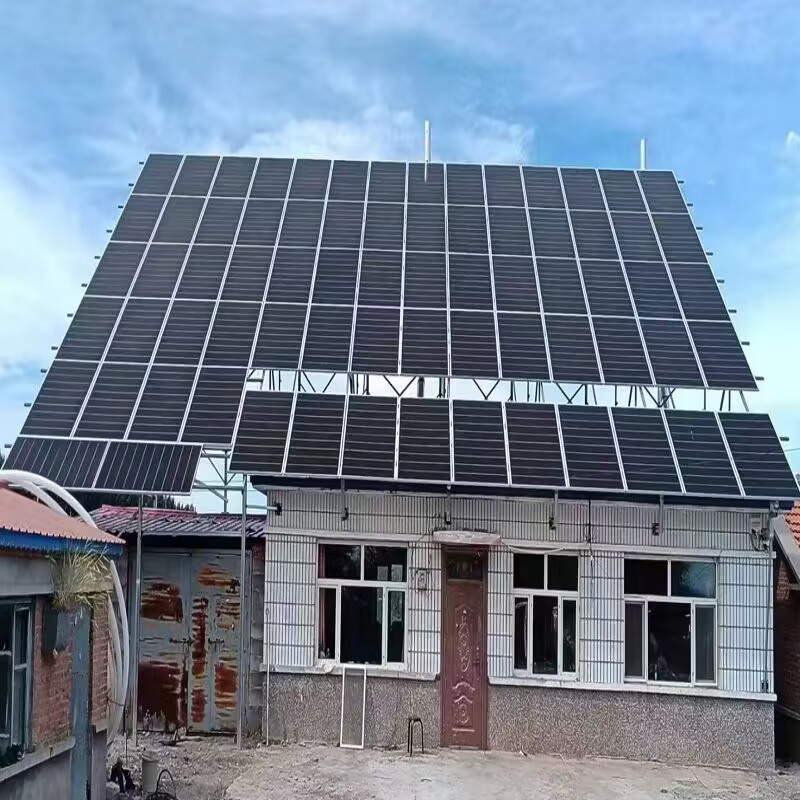

30kw solar system for home case



30kw solar system for home case

30kw solar system for home case



30kw Off Grid Solar System Packing



30kw Off Grid Solar System Packing

30kw Off Grid Solar System Packing



What do our customer say?



Solar System Review

Solar System Review

Solar System Review





Xianghong Solar Power System Projects



Solar Power System Projects

Solar Power System Projects

Solar Power System Projects

Solar Power System Projects

Solar Power System Projects



Xianghong Solar System Company Projects Video





Solar System Company Projects



Xianghong Solar System Packing & Delivery



Solar System Packing



Xianghong Solar System Warranty



Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



Xianghong Solar System Company Profile



Xianghong Solar System



Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.



We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.



We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.



Xianghong Solar System Factory



Xianghong Solar System Factory



Xianghong Solar System Factory



Xianghong Solar System Factory



Xianghong Solar System Exhibition



Xianghong Solar System Exhibition



Xianghong Solar System Certifications



Xianghong Solar System Certifications



Xianghong Solar System FAQ



1. Are you factory or trading company?

We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.



2. What is your company advantage?

We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.

We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.



3. What is the payment method?

Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.



4. What is the lead time?

Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.

Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.



5. What is your warranty?

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



6. How about the installation?

The home solar system is easy to install,,customer can install it by themself,There have instruction book with the goods,We provide installation drawing and user manual for you.

We can sppoint our engineers to guide the installation for big solar project.



Contact Xianghong Solar System



Xianghong Solar System Contact



Our 630W shingled solar panel instruction



630W shingled solar panel instruction



Our solar system use 630W shingled solar panel, it is higher technology than half cut solar panel, please check this attached 630w instruction, it have big advantage and can bring higher efficiency.





Our previous solar system for home and projects



 solar system for home projects

 solar system for home projects
