Solar System For Home

5KW Solar Power System Price 5KVA Off Grid Solar Panel Kits

How to choose solar system for home appliances? We start solar from 2003, We find you is to provide right solar and better product, 5kw 6kw 8kw 10kw solar power system is hot sale

Product Specification:
  • Model : XH-SY-5KW
  • Place Of Origin : Shandong,China
  • BrandName : XIANGHONG SOLAR
  • MOQ : 1 set,Accpet OEM &ODM
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
Specification
Application
Video



             5kw off grid solar power system



Invest Home With 5kw Off Grid Solar Power System---Save Your Electricity Bill



Off grid solar system is easy to install and simple to operate, 5kw 6kw 8kw 10kw solar system is popular for home use.We are factory, so price is better.

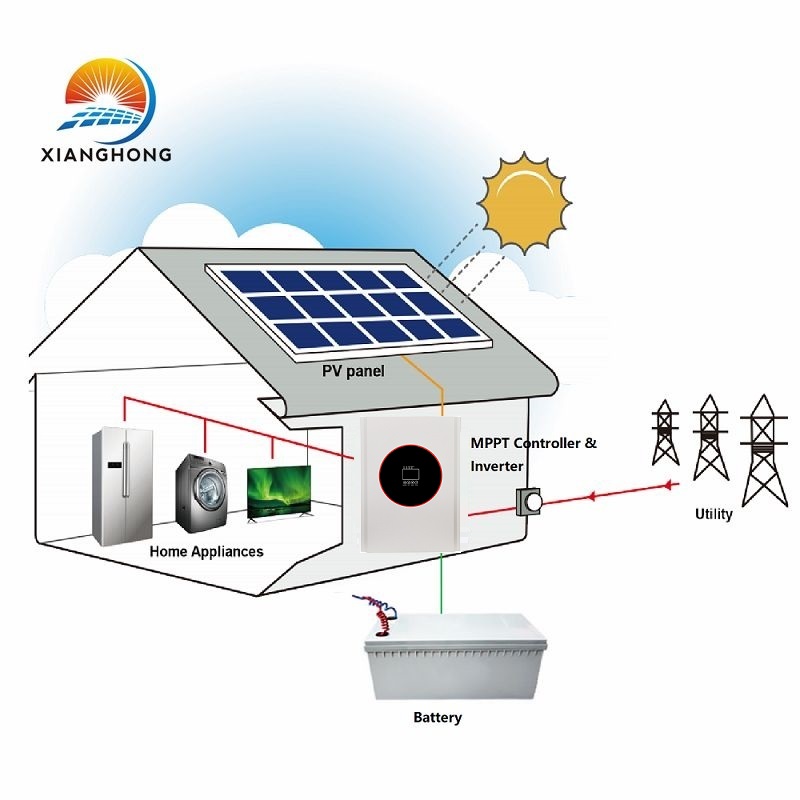

What is Off grid solar system?



Solar panel generate electricity to output free power for your loads, the solar excess electricity is stored in battery,customer can use it in any time. It is used for household appliances in remote village, rural area, without stable utility grid, the area where the city power is not stable or electrcity bill expensive.

If the inverter connect to grid utility,It means if solar system battery have no power, inverter will connect to city grid automatically to keep supplying electricity for home appliances.



5kw Off Grid Solar System Configuration Details



630W Shingled solar panel

 630W Shingled solar panel

  laminated Mono A grade

  25years warranty

  Above 25years Long Lifespan

   Vmp: 39.62V    Imp: 15.90A

  Open circuit voltage: 48.60V

  Size:2158mm×1236mm×35mm

  High efficiency,Anti-reflective,

  Anti-soiling surface power loss from dirt

Solar Mounting Bracket

 Solar Mounting Bracket

  1, Wind Load Max 55m/s

   2, Snow load: Max 1.5kn/m2

   3, Setting angle: 0-60°

   4, Material: Aluminum alloy

   5, Standard: Suit for EU,AU,US

                         Solar Combiner Box

 Solar Combiner Box

  Lighting Protection

  Reverse and surge protection

  Waterproof Protection IP65

  Over Current and Voltage Protection

     4mm² Solar Cables

  4mm² Solar Cables

  (one red or one black)

  suitable for solar system

  -40℃-90℃

250AH battery

  250AH battery

  Low Self-Discharge

  Free Maintenance

  Deep Cycle Performance

MC4 connector 8pairs 30A 1000V

  MC4 Connector 8pairs 30A 1000V

  Wire Cable Cutter &Stripper
  MC4 Crimper, Disassembly Tool

  Battery connector cable

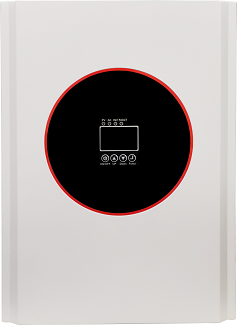

 5kw Inverter

 5kw Inverter

  Power frequency scheme design,

  Pure sine wave output,

  Suitable for various types of loads;

  Battery overvoltage / low voltage,

  Overload, short circuit,

  Over temperature protection, etc;

  Built in MPPT controller,

  Higher charging efficiency;



5kw Off Grid Solar System Introduction



5KW solar system can generate 35 to 40KWH in a sunny day

Our solar system have made many projects for home and power station, successfully used by customer with very high efficiency, 5 to 6 years cost-recovering, 25years warranty, can be used above 30years with free electricity obtaining.

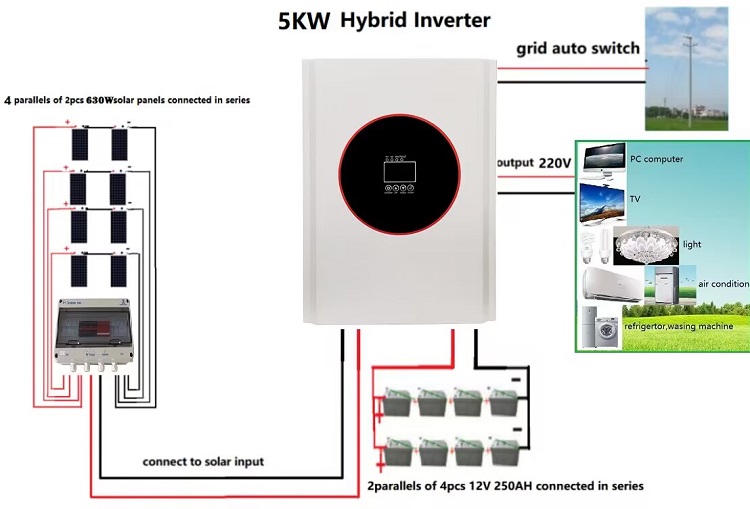

The system include:

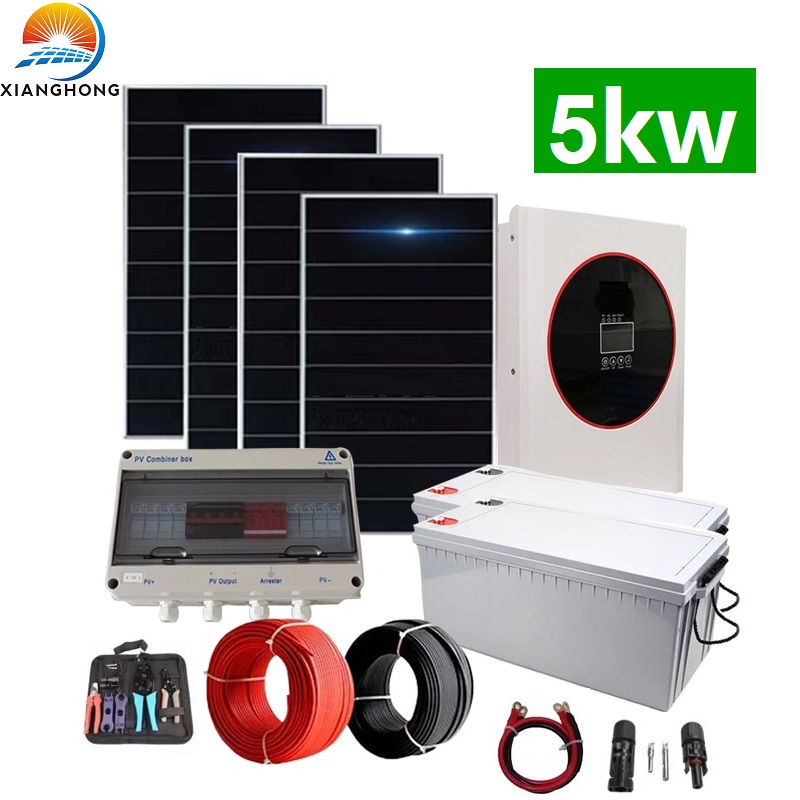

8pcs of 630W solar panel+ mounting bracket+ cables+combiner box+4pcs or 8pcs 250AH batteries +5kw hybrid inverter

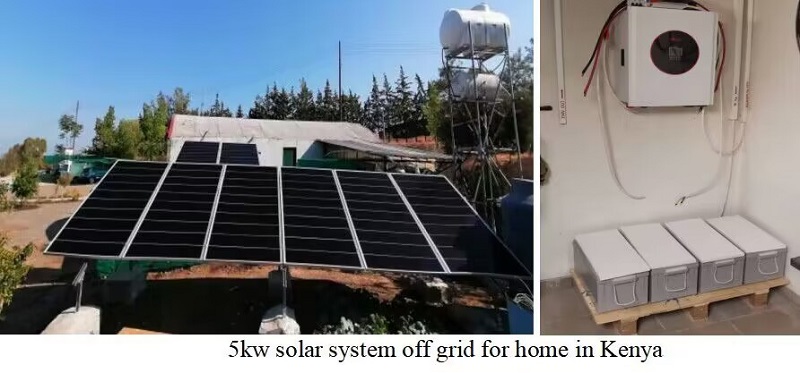

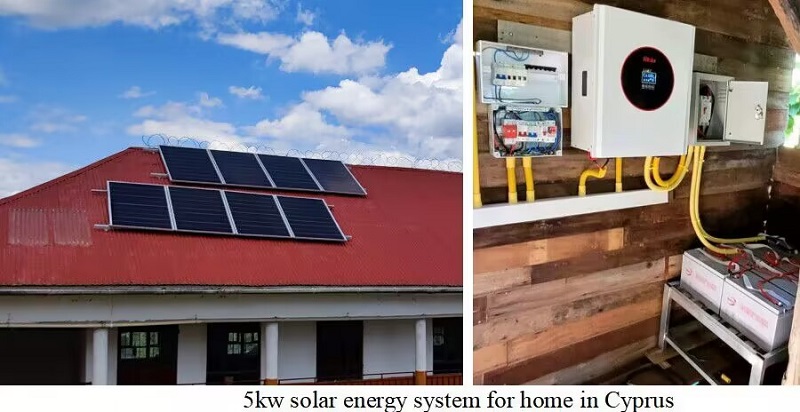

5kw solar system for home cases





What do our customer say?

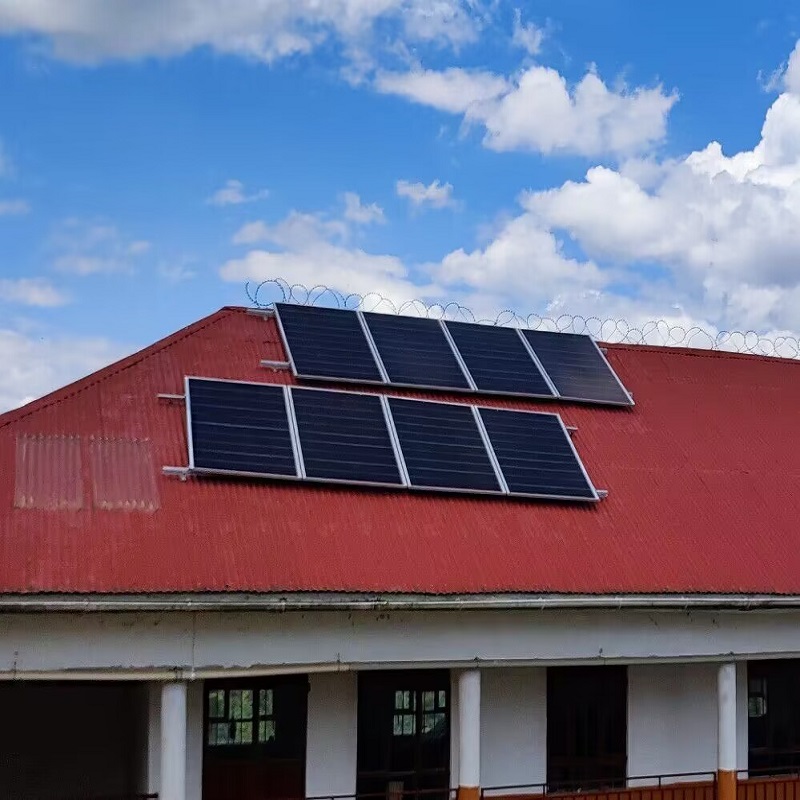

Xianghong Solar Power System Projects





Off Grid Solar System Projects Video



5kw off grid solar power system projects



5kw Off Grid Solar System Packing & Delivery



5kw off grid solar power system Packing



Xianghong Solar Products Warranty



Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



Xianghong Solar Company Profile



Xianghong Solar System Manufacturer



Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.



We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.



We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.



Xianghong Solar factory workshop



Xianghong Solar System Manufacturer



Xianghong Solar System Manufacturer



Xianghong Solar System Manufacturer



Xianghong Solar Exhibition



Xianghong Solar Exhibition



Xianghong Solar Certifications



Xianghong Solar Certifications



Xianghong Solar FAQ



1, Are you factory or trading company?

We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.



2. What is your company advantage?

We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.

We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.



3, What is the payment method?

Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.



4,What is the lead time?

Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.

Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.



5, What is your warranty?

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



6, How about the installation?

The home solar system is easy to install,,customer can install it by themself,There have instruction book with the goods,We provide installation drawing and user manual for you.

We can sppoint our engineers to guide the installation for big solar project.



Xianghong Solar Contact



Product name solar energy system
Solar panel 630W Mono
Controller MPPT Charge Controller
Mounting Structure Roof Mounting Structure
Battery 250AH Gel Battery
Inverter Pure Sine Wave Inverter
Life Span 25years
Warranty 10 Years
Protection Overloads
System Type off grid for household appliances






Our 630W shingled solar panel instruction



630W shingled solar panel factory



Our solar system use 630W shingled solar panel, it is higher technology than half cut solar panel, please check this attached 630w instruction, it have big advantage and can bring higher efficiency.



 5kw Solar Power System for Home Appliances Example



Load electrical appliance

Load power

quantity

Daily work time

Power consumption

lighting

30W

8

6

1440Wh

computer

300W

3

5

4500Wh

printer

250W

1

1

250Wh

Fax machine

150W

1

2

300Wh

refrigerator

200W

1

24

1600Wh

Air condition

1000W

2

6

12000Wh

Washing machine

500W

1

0.5

250Wh

Microwave oven

1000W

1

1

1000Wh

Color TV

200W

1

6

1200Wh

Water pump

400W

1

1

400Wh

total

5865W





21140Wh



1, 6-7hrs/day.lasting3-4days under rainy/cloudy day
2, Application:   Lighting, TV , radio, street lights, water pump, computer, refrigerator, microwave oven,Washing-machine,

printer and fax machine

3, Every Customer's home have different home appliances and loads, this is an example for customer reference

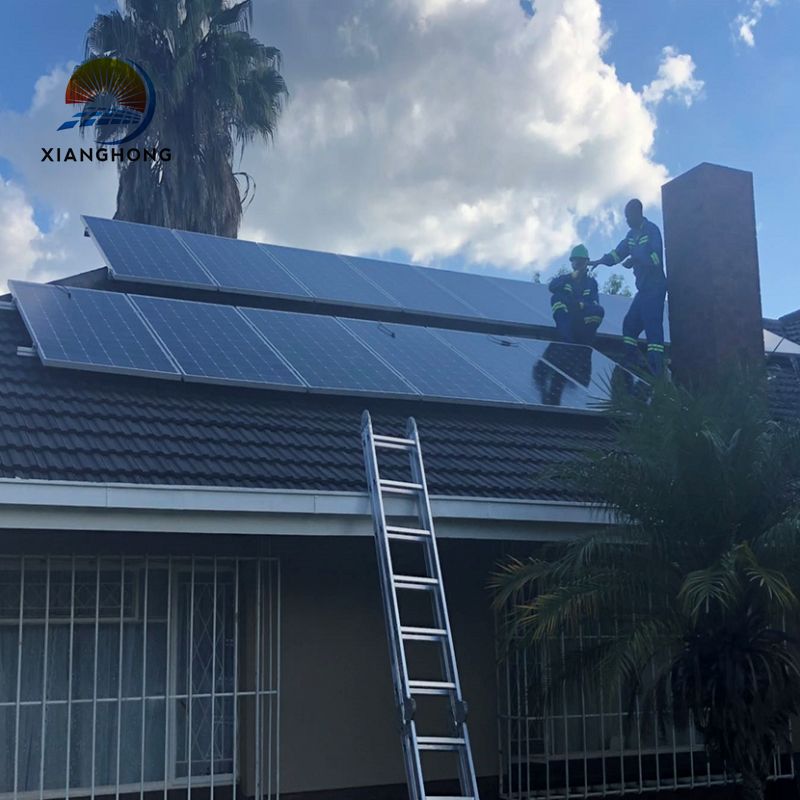

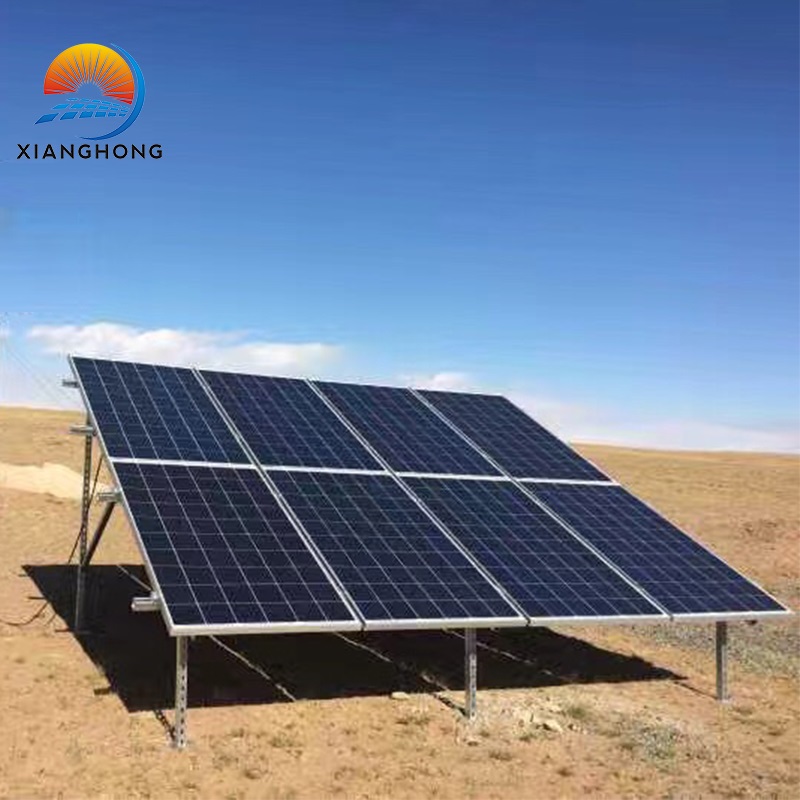

Our previous solar system for home and projects



5kw off grid solar power system projects

5kw off grid solar power system projects
