Commercial 100kw Off Grid Solar Power Plant With Battery Cost

Solar power can power your loads, the solar excess electricity is stored in battery suitable to use in the area where the city power is not stable or expensive electricity

Product Specification:
  • Model : XH-SY-100KW
  • Place Of Origin : Shandong,China
  • BrandName : XIANGHONG SOLAR
  • MOQ : 1 set,Accpet OEM &ODM
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal
Inquiry Now
Product Details
Specification
Application
Video



             100kw Solar Plant With Battery



Invest home with solar power system---Save your electricity bill



Off grid solar system is simple and most use for home,It is used for self household appliances, solar panel generate electricity to store power in batteries, customer can use it in any time. It is suitable for remote village, rural area or without stable utility grid.

Commercial Solar Power



Off grid solar system is easy to install and simple to operate,If the inverter connect to grid,It means if solar system have no power, inverter will connect to city grid automatically to keep supplying electricity for home appliances.



100kw Solar Power Plant Configuration



                                                                                                                                          630W Shingled solar panel

 630W Shingled solar panel

  laminated Mono A grade

  25years warranty

  Above 25years Long Lifespan

   Vmp: 39.62V    Imp: 15.90A

  Open circuit voltage: 48.60V

  Size:2158mm×1236mm×35mm

  High efficiency,Anti-reflective,

  Anti-soiling surface power loss from dirt

                                    Mounting Bracket

  Mounting Bracket

  1, Wind Load Max 55m/s

   2, Snow load: Max 1.5kn/m2

   3, Setting angle: 0-60°

   4, Material: Aluminum alloy

   5, Standard: Suit for EU,AU,US

                                          Combiner Box

 Combiner Box

  Lighting Protection

  Reverse and surge protection

  Waterproof Protection IP65

  Over Current and Voltage Protection

                                        4mm² cables

  4mm² cables

  (one red or one black)

  suitable for solar system

  -40℃-90℃

                                      250AH battery

250AH battery

  Low Self-Discharge

  Free Maintenance

  Deep Cycle Performance

                                          MC4 connector 8pairs 30A 1000V

MC4 connector 8pairs 30A 1000V

  Wire Cable Cutter &Stripper
  MC4 Crimper, Disassembly Tool

  Battery connector cable

                    Solar Controller

Solar Controller

Automatic power control function;

Modular design with simple structure and easy maintenance;

LCD display;

Perfect protection for solar panel and battery



100KW Inverter

100KW Inverter

Low frequency toroidal transformer increase efficiency,Pure sine wave;

IGBT from Mitsubishi as power components;

Using American ATEMEL as figure controller; Perfect protection and warning functions;

Touch screen, perfect display;

Supports diesel or gasoline generator;

Provide strong power all day 24hours



100kw Solar Power Plant Introduction



This is 100kw solar system for home,village,hospital,factory,school use our solar panel factory started from 2003, our customer's solar panel worked 19years, we warranty our solar system have a long lifespan above 25years.

Our solar system have made many projects for home and power station, successfully used by customer with very high efficiency, 5 to 6 years cost-recovering, 25years warranty, can be used above 30years with free electricity obtaining.



100kw Solar Power Plant With Battery



1,5 parallels of 16pcs X 630W 39.62V solar panel to be 647.28V DC connected in series.

2,5 parallels of 16pcs X630W  connect to 1PC  Combiner box ,

3, another 5 parallels of 12pcs X630W  connect to   Combiner box ,

4, The  Controller have 2 routes.  2 routes connect 2pcs of Combiner box.

5, The controller charge 2parallels of 40pcs 12V 200AH batteries of 480V connected in series,

6,The power from batteries of 480V DC  connect to 480V DC input of 100KV inverter

7, The inverter will transform 480V DC to be 380V 3phase for project use



          100kw Solar Plant With Battery



100KW solar system can generate 700 to 800KWH in a sunny day
The system include:
160pcs of 600W solar panel+ mounting bracket+ cables+combiner box+solar controller+80pcs or 160pcs 250AH batteries +100kw inverter



100kw Solar Power Plant With Battery cases



100kw Solar Plant With Battery





100kw Solar Power Plant Packages



Solar System Packages

100kw Solar System Packages



Off Grid Solar System Projects



Solar System Projects



Solar Power Plant Packages & Delivery



Solar Power Plant Packages



100kw Solar Power Plant With Battery Warranty



Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



Xianghong Solar Company Profile



Xianghong Solar Company



Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.

We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.

We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.



Xianghong Solar factory workshop



Xianghong Solar factory



Xianghong Solar factory workshop



Xianghong Solar factory



Xianghong Solar Exhibition



Xianghong Solar Exhibition



Xianghong Solar Certifications



Xianghong Solar Certifications



Xianghong Solar System FAQ



1, Are you factory or trading company?

We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.



2. What is your company advantage?

We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.

We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.



3, What is the payment method?

Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.



4,What is the lead time?

Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.

Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.



5, What is your warranty?

Solar Panels: 25years, Gel Battery: 2years, Inverter: 5years, Mounting Brackets: 25years

1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.

2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.

3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance



6, How about the installation?

The home solar system is easy to install,,customer can install it by themself,There have instruction book with the goods,We provide installation drawing and user manual for you.

We can sppoint our engineers to guide the installation for big solar project.



Xianghong Solar Contact



Xianghong Solar Contact

Our 630W shingled solar panel instruction:

Our solar system use 630W shingled solar panel, it is higher technology than half cut solar panel, please check this attached 630w instruction, it have big advantage and can bring higher efficiency.

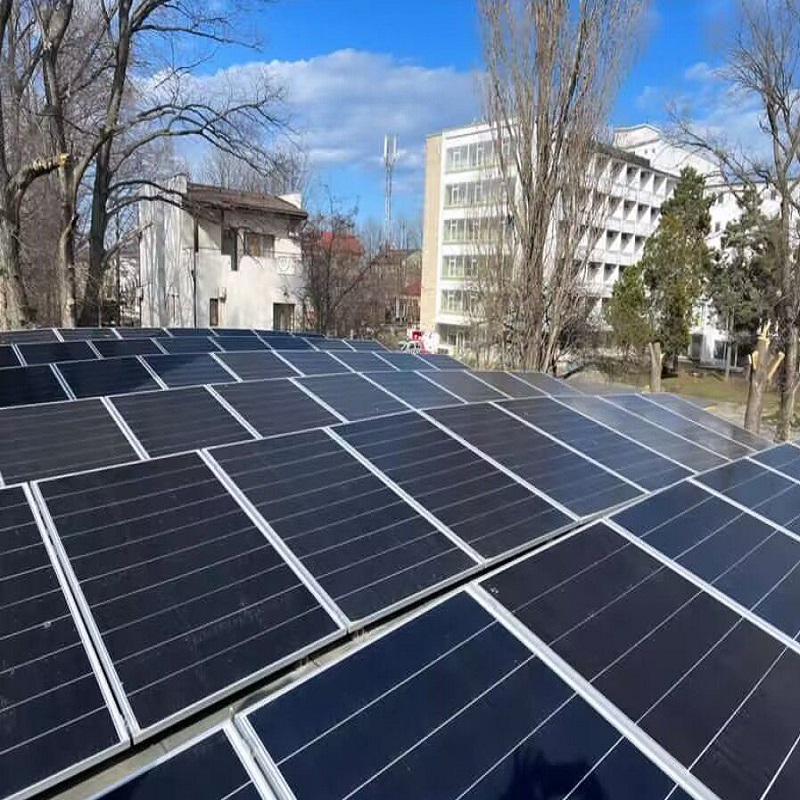

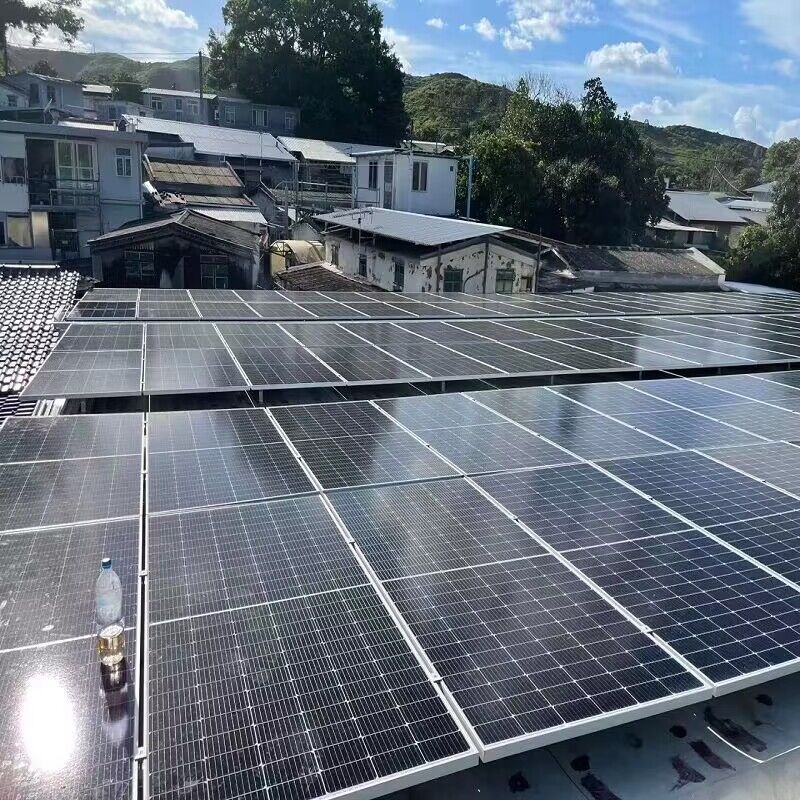

Our previous solar system for home and projects
