high efficiency factory price 450w full black solar panel manufactures for house with long warranty
Product Specification:
450W Shingled Solar Panel Full Black Mono A Grade Specification:
Model |
XH-SP-450W |
Maximum Power at STC(Pmax) |
450W |
Optimum Operating Voltage (Vmp) |
39.92V |
Optimum Operating Current (Imp) |
15.39A |
Open-Circuit Voltage (Voc) |
48.26V |
Short-Circuit Current (Isc) |
16.15A |
Solar Cell Efficiency (%) |
23.85% |
Solar Module Efficiency (%) |
22.86% |
Operating Temperature |
-40 to 85℃ |
Maximum System Voltage |
DC1500 |
Maximum Series Fuse Rating |
20A |
Power Tolerance |
0~+3% |
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |

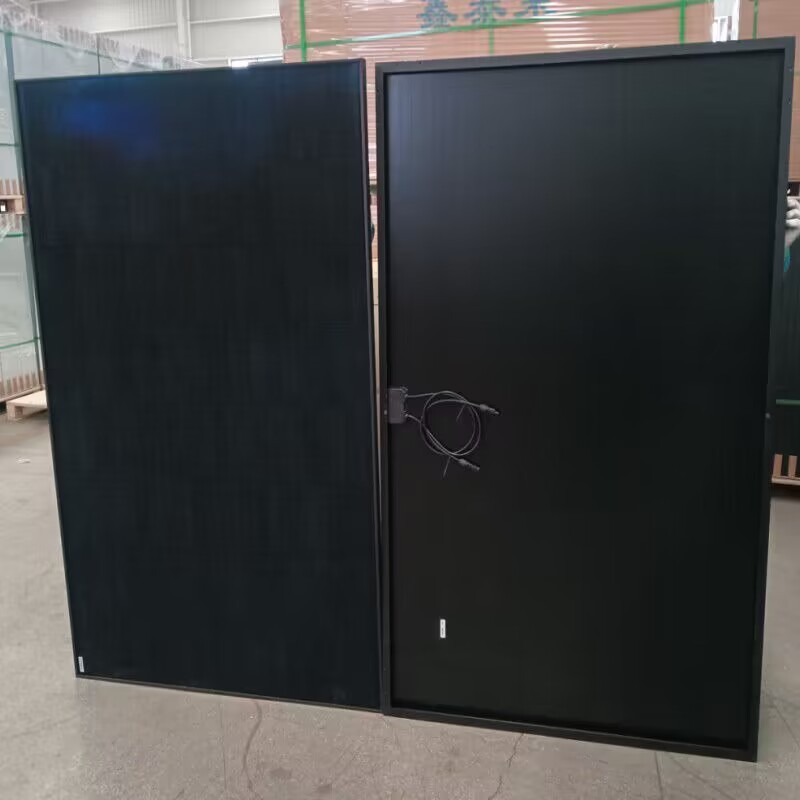

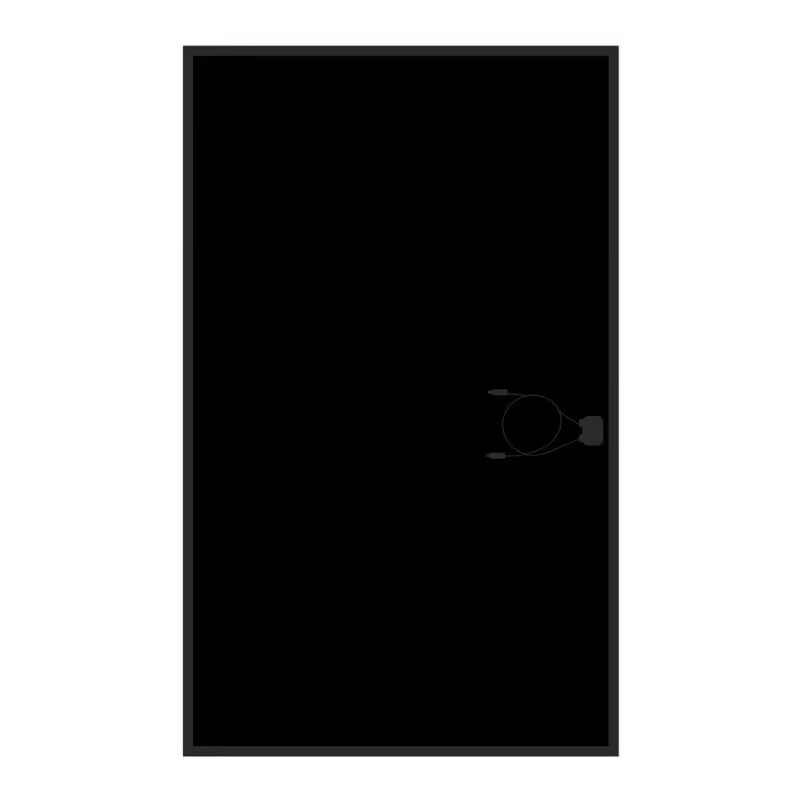

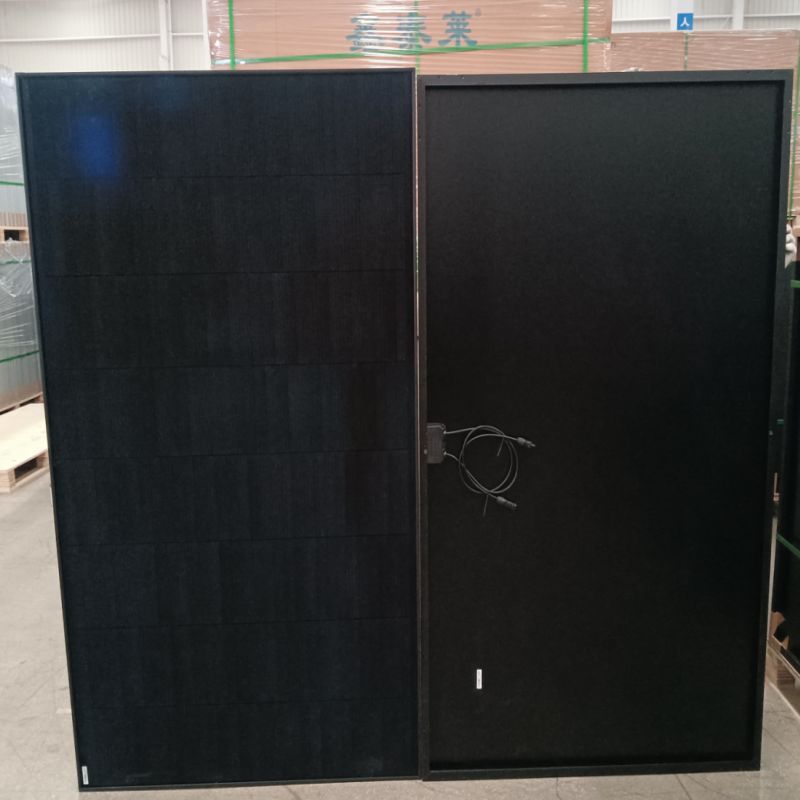

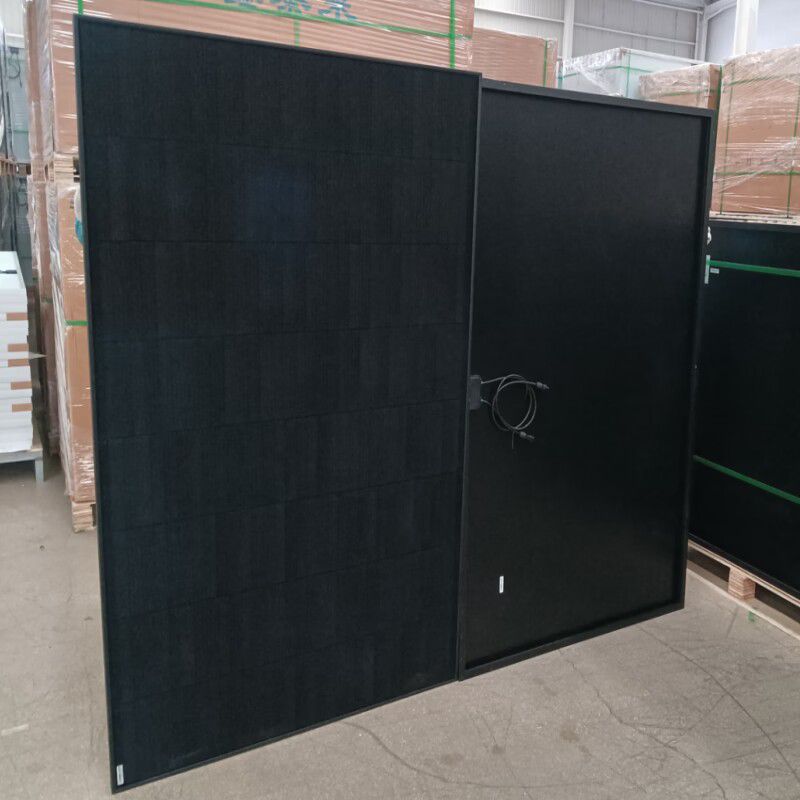

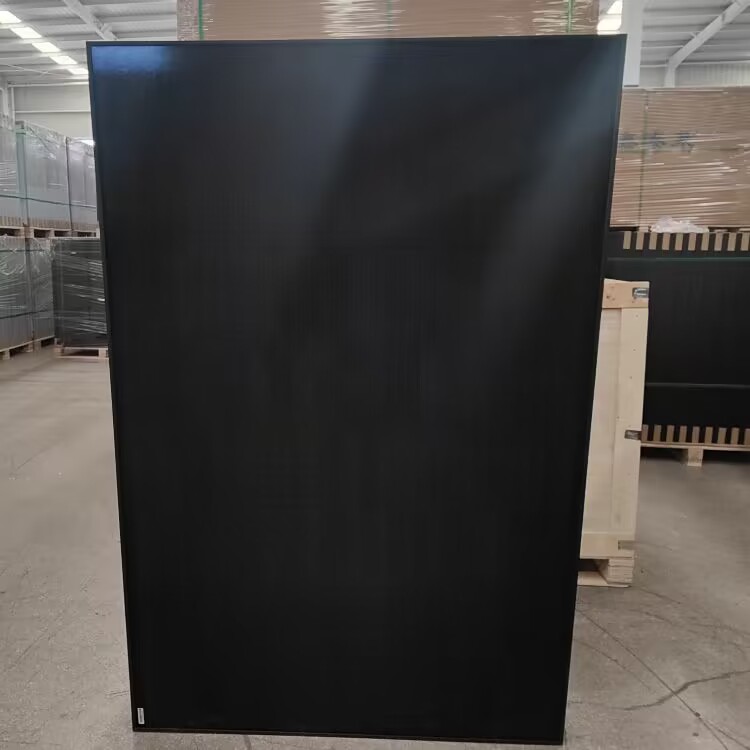

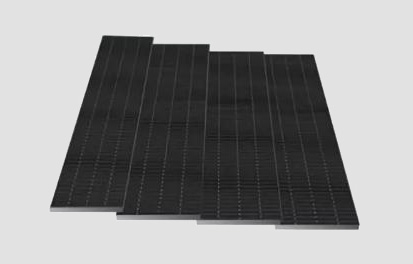

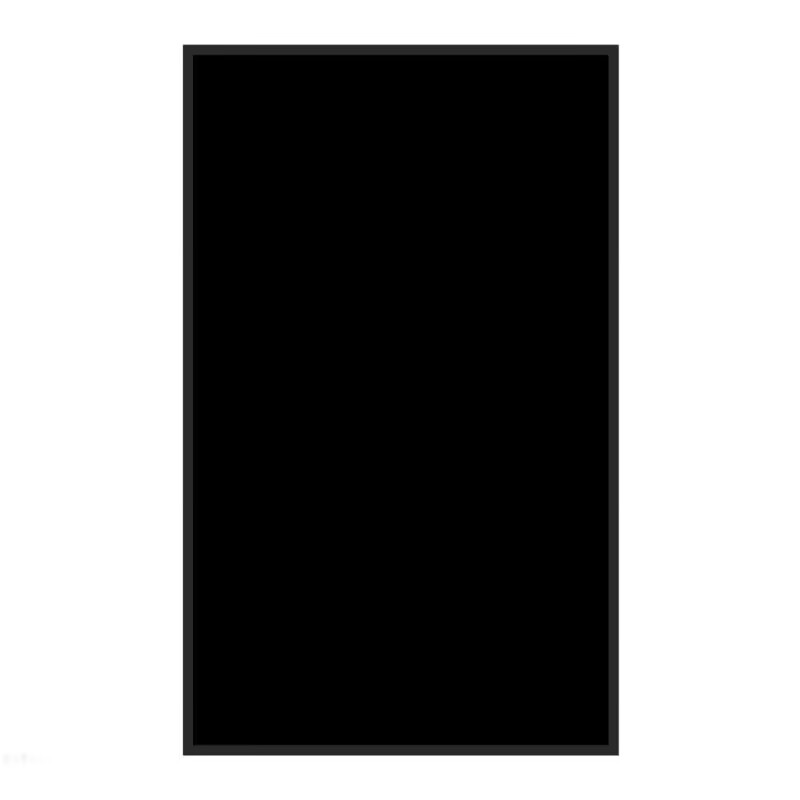

450W Shingled Full Black Solar Panel

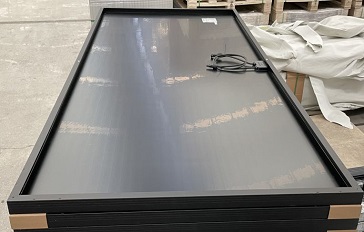

Detail of Shingled Solar Panel
|
Shingled Solar Cell *Reduced hot spot risk * Higher energy yield * Reduced resistive loss *High conversion rate and high output rate Stable performance under weak light conditions |
|
Glass *Antireflective coating to increase the module efficiency up to 22% |
![]() |
EVA Film *Light transmittance more than 92% |
|
Black Aluminum Frame *Strong mechanical load resistance up to 5400 Pa |
![]() |
Junction box and MC4 *IP 68 protection grade |
|
Black Back sheet *Low moisture permeability against snail trail defect |
*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
Solar Panel Projects

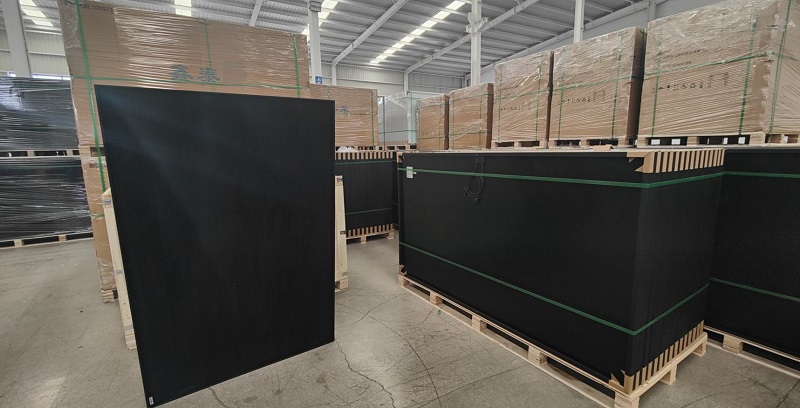

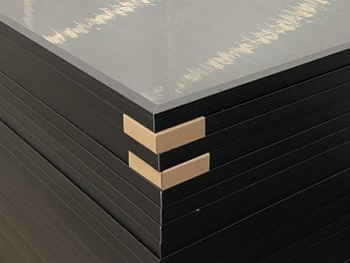

Xianghong Solar Panel Packing & Delivery
Xianghong Solar Panel Company Profile
Qingdao Xianghong Group founded 2 solar panel factories from 2003 which is early specializing in solar field in China, We are professional in providing complete solar system for home and commercial project, have experienced international trade team to provide professional service for customer.
We provide A grade quality solar panel and system with modern highly automated workshop,Our products have passed of CE,IEC,ISO and TUV certificate,Our company have done many big solar projects in domestic and abroad in the past years.
We had established long term cooperation with customers more than 150 countries from Europe, Africa, Asia, the middle east,and America countries,We welcome new customers to establish a good solar business with us,We will provide high quality, better price to save our customer electricity bill.We welcome to customer visit to our factory.
Xianghong 610W Solar Panel Factory
Xianghong Solar Panel Factory
Xianghong Solar Panel Exhibition
Xianghong Solar Panel Certifications
Xianghong Solar Panel FAQ
1, Are you factory or trading company?
We are group company have one trade and two solar panel factories since 2003 which have modern highly automated workshop.
2. What is your company advantage?
We have a better price and quality, We are in solar field for many years have more experiences to configurate system and save cost,we near to Qingdao port which is The World's Seventh Big Port, can get to 700 ports of world's 180countries,we can deliver goods to our port to save cost for customer.
We had establish with our port biggest ship agent more than 15years, always have a better shipping cost and can save customer’s destination port charges.
3, What is the payment method?
Usually we do T/T payment with 100% for small order to deliver the goods fast, if bigger order it is negotiable.
4,What is the lead time?
Our quotation is FOB price, When you confirm the order and tell us your port, we can ask shipping cost according to your order quantity.
Usually after deposit we will arrange production, we can finish production in 7 to 14days, or If we have enough stock ,We can deliver goods in one week.
5, What is your warranty?
Solar panel: 10years
Output Power: more than 90% within 10years
more than 80% within 25years
1).During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.
2),After warranty time, We will provide components with cost price for maintenance and repair product in life long.
3),Subject to proper installation ,maintenance and use in accordance with the User Manual. We shall not responsible for the damage that due to the improper use, maintenance
Xianghong Solar Panel Contact
Brand Name:Xianghong
Model Number:XHM-450W
Place of Origin:Shandong, China
Cell size:210mm
Type:PERC
Certificate:CE,ISO,TUV,IEC
Warranty:10years
Application:Commercial
Junction Box:IP68 Rated
Frame:Aluminum Alloy
Weight:20.9kg
Connector:Compatible Connector
Front Cover:3.2mm Tempered Glass High Transmission
