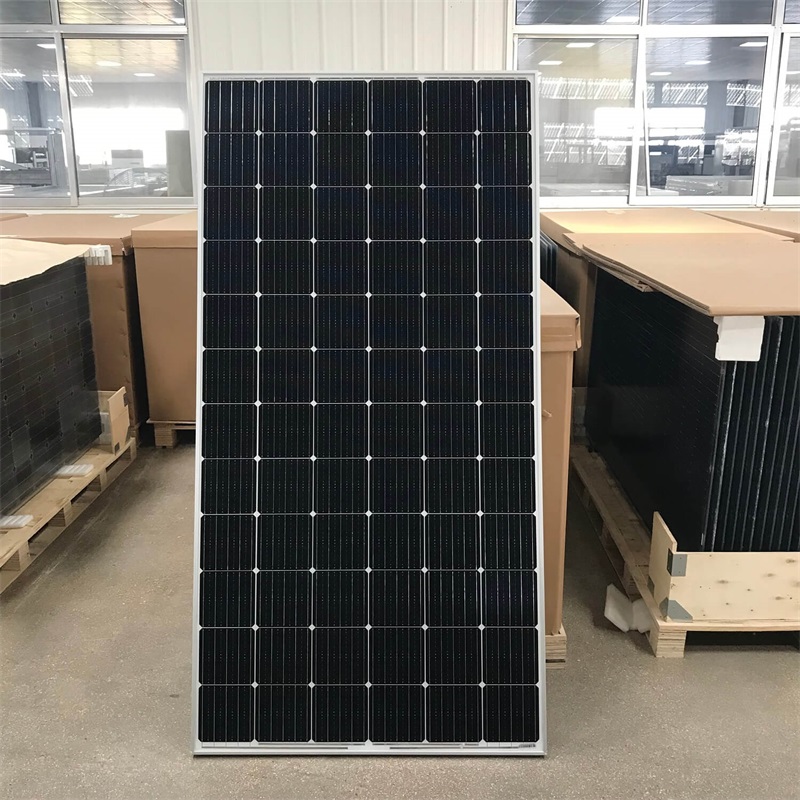

380w 390w mono solar panel 400w 410w solar power panel
Product Specification:- XH-ON-30KW :
| Model | XHM-350W | XHM-360W | XHM-370W | XHM-380W |
| Nominal Power | 350W | 360W | 370W | 380W |
| Maximum Power | 36V | 36V | 36V | 36V |
| Voltage(Vmp) | ||||
| Maximum Power | 9.72A | 10A | 10.42A | 10.56A |
| current(Imp) | ||||
| Open-circuit Voltage(Voc) | 44.2V | 44.2V | 44.2V | 44.2V |
| Short-circuit Current(Isc) | 11.36A | 11.69A | 12.18A | 12.34A |
| Module Efficiency [%] | 18.03% | 18.55% | 19.06% | 19.58% |
| Power Tolerance | ±3% | |||
| Maximum System | 1000V / 1500V DC(IEC) | |||
| Voltage | ||||
Detail of Solar Panel
|
|

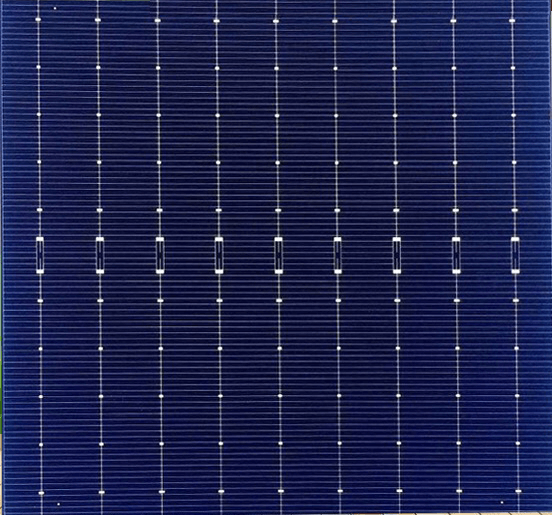

Solar Cell-A Grade *Canadian cell or Longi cell *9 lines solar cell efficiency can get to 23% *Stable performance under weak light conditions *PID free treatment upon request *100% In-line Electrical Luminance tested |
|

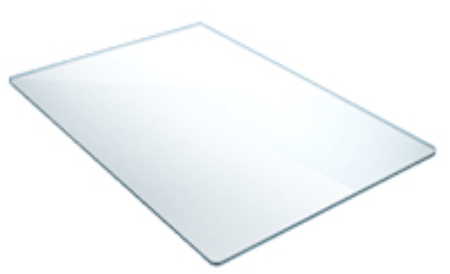

| Glass *Antireflective coating to increase the module efficiency up to 2% *Light transmittance improvement above 3% *self-cleaning function |
|
|
|
|

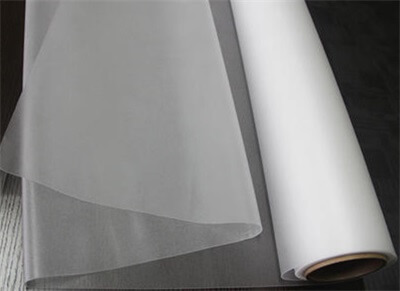

EVA Film *Light transmittance more than 92% *High resistance to heat and moisture *UV resistance against ageing |
|

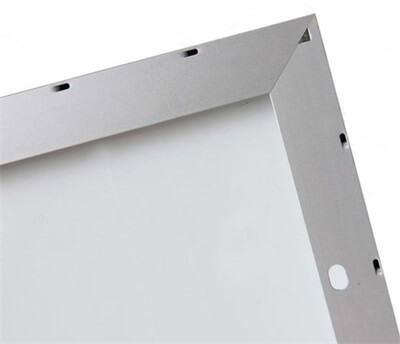

| Aluminum Frame *Strong mechanical load resistance up to 5400 Pa *Anodic oxidation layer resistant chemical corrosion *Silver and black color optional |
|
|
|
|

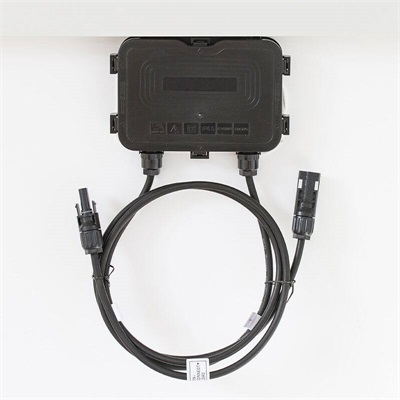

Junction box and MC4 *IP 68 protection grade *High quality diodes for electric safety *1500V system voltage available *Reliable by-pass diodes assure surge protection protection |
Our Service
Warranty:
Controller: 5years, Gel Battery:2years, Inverter:5years
Mounting Bracket: 10years warranty, 25years service life
Solar panel:
Photovoltaic module: 10years
Output Power: more than 90% within 10years
more than 80% within 25years
1.During warranty time, We provide components free for repair or replacement caused by defects in materials and workmanship under normal application, installation, use and service conditions.
2,After warranty time, We will provide components with cost price for maintenance and repair product in life long.
Generally we do T/T payment:
1, For small order, 100% advanced payment
2, For big order, 30% advanced payment, and it is negotiable
We hereby promise, we will supply high quality, high technology,deliver on time, and provide best price and service for our customer all over the world.
We welcome to customer use Trade Assruance order, it is an online order on alibaba which is free service provided by alibaba, you will enjoy:
1, 100% payment protection
2, 100% on time shipment protection
3, 100% product quality protection
[Q:] What is a solar panel?
[A:] The solar panel cells, components, frame, tempered glass, packaging materials and junction box, The solar panels in the light of a certain intensity can produce current.
Q:] Can you introduce your company?
[A:] Yes, Xianghong is A Group company, we have 2 solar panel factories and 1 solar street light factory, Xianghong is responsible for exporting sale service, our factories near to Rizhao airport and Qingdao air port, we can supply good price of solar and wind energy with related products for our customer.
We have an experienced team to provide service according to customer's request,We can offer a discount according to big quantity,Customer can easily install home solar system by themself according to our drawing and manual, if have a big quantity, we can provide service of sending enginners to help customer to install solar projects.
[Q:] Can I have my own logo on the solar panel?
[A:] Yes, OEM service is available for us!
